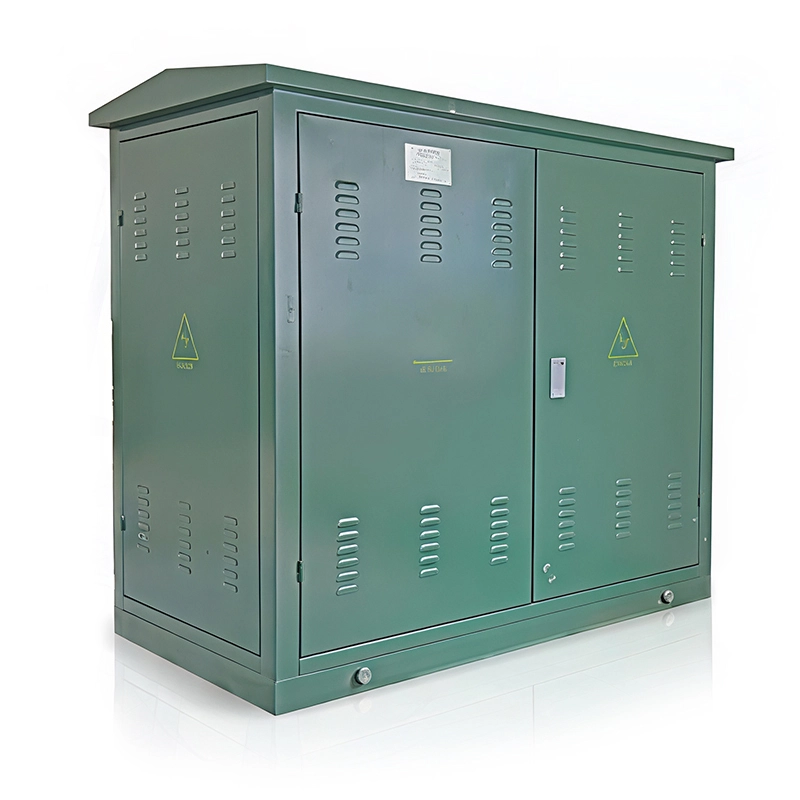

DFW Outdoor Distribution Box - Weatherproof Electrical Enclosure
Product Characteristic
● Prefabricated silicone rubber closed socket structure, fully insulated, fully sealed;
● Live touchable and live non-touchable separable cable terminals are available;
● Dust proof, moisture proof, flood resistance, corrosion resistance, adapt to outdoor operating environment;
● Strong expansion, from two to more than two lines, flexible combination, to meet the requirements of a variety of wiring schemes;
● Maintenance-free, small size, compact structure, easy installation and maintenance.beautiful appearance;
● Equipped with electric display, with lightning arrester and short circuit fault indicator, can be installed anti-theft lock.
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product details
DFW-12 outdoor cable distribution box is used for accepting and distributing electric energy in 10kV cable ring network power supply or terminal power supply system. It is divided into non-switch and cable distribution box with switch, in which the switch distribution box is divided into load switch and vacuum breaker.
It has the advantages of full insulation,full seal, dust proof, corrosion resistance, maintenance free, etc. Its simple, convenient and flexible connection combination, economic, reliable and durable structural characteristics.and has become the preferred equipment for distribution network cable engineering.
Product parameter
|
|
Normal |
With switch |
|
|
Rated voltage |
12kV |
12kV/6.3kV |
|
|
Rated current |
630A |
630A 1250A |
|
|
Rated short- time withstand current |
20KA/2S |
20kA/3S 25kA/2S |
|
|
Rated peak withstand |
current |
50kA |
50kA |
|
Power frequency withstand voltage |
42kV/min |
42kV/1min |
|
|
Rated lightning impulse voltage |
75kV |
75kV |
|
|
Protection class |
IP33 |
IP33 IP43 |
|
|
Machnical life |
>30years |
>20years |
|
|
Operating envirment |
-30°C~50°C |
-25°C~45°C |
|
|
Altitude |
1000meters |
|
|
