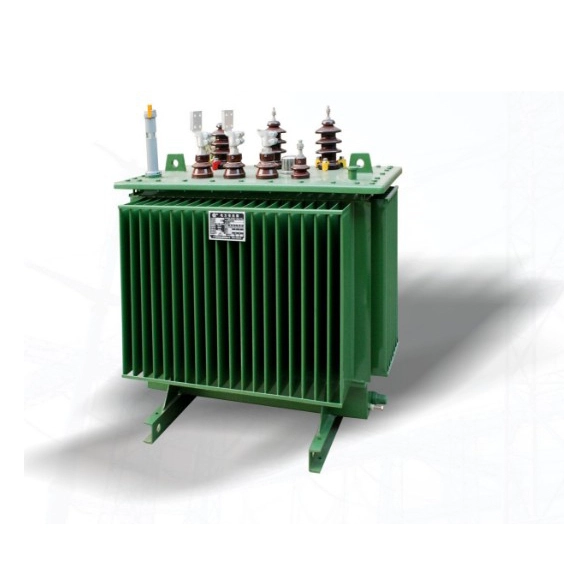

20kV Transformer - S11-M Series for Industrial Applications
The 20kV Transformer - S11-M Series is specifically designed for industrial applications, providing reliable and efficient power distribution at high voltages. With its advanced design and robust construction, this transformer ensures optimal performance and safety in demanding industrial environments.
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product details
The S11-M series 20kV transformers are new products developed for the 20kV distribution network20kV distribution transformers can effectively improve the economic power supply capacity, increase the economic transmission distance, save land resource occupation effectively reduce the line loss rate energy saving effect is obvious, is the national key promotion of energy-saving products.
The products are suitable for areas with high load density and rapid growth in power demand, as well as emerging regions or places where the current power grid foundation is weak. it can also be applied to petrochemical and other industries with high safety requirements, public places, combined substations, etc.
Product parameter
| Model | Rated Capacity (kVA) |
Rated Voltage | Linkage Group |
Open Circuit Losses (W) |
Load LoSS (W) |
No-load current (%) |
lmpedance voltage (%) |
Weight(KG) | ||||
| HV (kV) |
HV Tap Range |
LV (kV) |
Untanking Mass | Oil Weight | Total Weight | |||||||
| S11-M-30/20 | 30 | 20 | ±5%or ±2*2.5% |
0.4 | Yyn0 or Dyn11 |
100 | 690 | 2.1 | 5.5 6.0 |
150 | 90 | 290 |
| S11-M-50/20 | 50 | 130 | 1010 | 2.0 | 200 | 120 | 420 | |||||
| S11-M-80/20 | 80 | 180 | 1440 | 1.8 | 260 | 160 | 550 | |||||
| S11-M-100/20 | 100 | 200 | 1730 | 1.6 | 310 | 190 | 640 | |||||
| S11-M-125/20 | 125 | 240 | 2080 | 1.5 | 370 | 220 | 760 | |||||
| S11-M-160/20 | 160 | 280 | 2540 | 1.4 | 430 | 260 | 890 | |||||
| S11-M-200/20 | 200 | 340 | 3000 | 1.3 | 510 | 310 1050 | ||||||
| S11-M-250/20 | 250 | 400 | 3520 | 1.2 | 600 | 370 | 1260 | |||||
| S11-M-315/20 | 315 | 480 | 4210 | 1.1 | 710 | 430 | 1480 | |||||
| S11-M-400/20 | 400 | 570 | 4970 | 1.0 | 870 | 530 | 1820 | |||||
| S11-M-500/20 | 500 | 680 | 5940 | 1.0 | 1030 | 630 | 2160 | |||||
| S11-M-630/20 | 630 | 810 | 6820 | 0.9 | 1230 | 740 | 2560 | |||||
| S11-M-800/20 | 800 | 980 | 8250 | 0.8 | 1470 | 890 | 3070 | |||||
| S11-M-1000/20 | 1000 | 1150.0 | 11330.0 | 0.7 | 1740 | 1050 | 3630 | |||||
| S11-M-1250/20 | 1250 | 1380.0 | 13200.0 | 0.7 | 2000 | 1210 | 4160 | |||||
| S11-M-1600/20 | 1600 | 1660.0 | 15950.0 | 0.6 | 2400 | 1450 | 5010 | |||||
