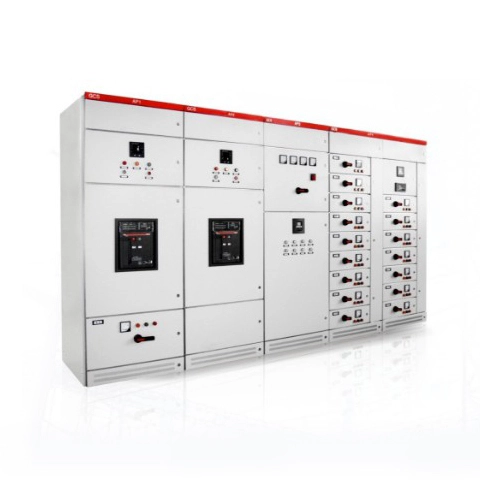

GCS LV Withdrawable Switchgear for Industrial Applications
The GCS LV withdrawable switchgear is designed for a variety of industrial applications, offering reliable power distribution and motor control. With a rated voltage of 400v and a rated current of up to 6300A, this low-voltage distribution device is a versatile solution for various industries and power system needs.
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product details
GCS LV withdrawable switchgear is suitable for power plant, petroleum, chemical, metallurgy, textile, high-rise building and other industries of power distribution system. As a three-phase Ac 50(80)Hz, rated operating voltage of 400v. rated current o6300A and below the power supply system for distribution, motor control, reactive power compensation used in low-voltage complete sets of distribution devices.
The device adopts standard modular design, each functional unit is relatively independent, the drawer is stable and reliable, ensure that the same unit is interchangeable, improve the reliability of power supply.
Product parameter
| Units | |||
| Rated operational voltage | V | 400 | |
| Rated frequency | Hz | 50/60 | |
| Rated current | Horizontal bus | A | 1000~6300 |
| Vertical bus | A | 1000 | |
| Rated short-time withstand current(1s) | kA | 50/80 | |
| Rated peak withstand current | kA | 105/176 | |
| Dielectric strength | V/1min | 2500 | |
| Rated insulation voltage | V | 660(1000) | |
| Effective mounting height | mm | 1800 | |
| Drawer specification | 400mm (16E) | mm | 250AsIns630A |
| 200mm (8E) | mm | 63AsIns250A | |
| 200/2mm (8E/2) | mm | In≤63A | |
| Control motor capacity | kW | 300 | |
| Shell protection class | IP30/IP40 | ||
| Size | mm | 600~1000)×1000×2200 | |
