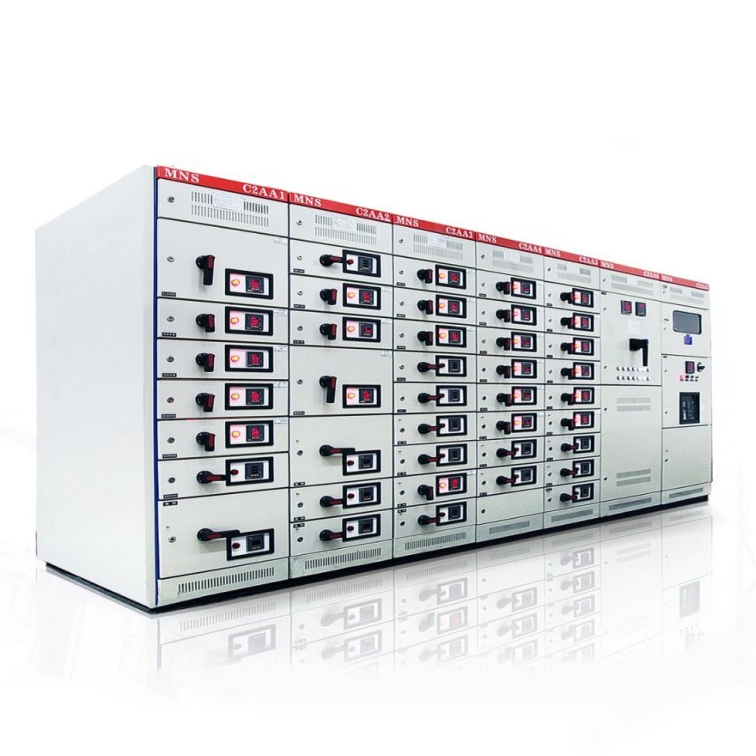

MNS LV Withdrawable Switchgear for Industrial Applications
The MNS LV Withdrawable Switchgear is designed for industrial applications, featuring a standard modular design with a compact and reinforced C profile assembly. The aluminum zinc plate processing provides excellent anti-corrosion capabilities, making it ideal for demanding industrial environments.
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product details
MNS LV Withdrawable switchgear, the cabinet body adopts standard modular design, compact structure, composed of reinforced C profile assembly, cabinet frame and all internal components with aluminum zinc plate processing, anti-corrosion ability.
Each function unit is interchangeable to improve the reliability of power supply.MNS LV Withdrawable switchgear is suitable for power plants, substations, petrochemical, metallurgical rolling, light industrial textile and other factories and mining enterprises and residential areas, high-rise buildings and other places, as Ac50~60Hz, rated working voltage 400V power system of power distribution equipment for power conversion, distribution and control.
Product parameter
| Units | |||
| Rated operational voltage | V | 400 | |
| Rated frequency | Hz | 50/60 | |
| Rated current | Horizontal bus | A | 1000~6300 |
| Vertical bus | A | 1000 | |
| Rated short-time withstand current(1s) | kA | 100 | |
| Rated peak withstand current | kA | 220 | |
| Dielectric strength | V/1min | 2500 | |
| Rated insulation voltage | V | AC660 | |
| Effective mounting height | mm | 1800 | |
| Drawer specification | 400mm (16E) | mm | 250A≤In≤630A |
| 200mm (8E) | mm | 63A≤In≤250A | |
| 200/2mm (8E/2) | mm | Ins63A | |
| Control motor capacity | kW | 300 | |
| Shell protection class | IP30/IP40 | ||
| Size | mm | 400~1000)×1000×2200 | |
