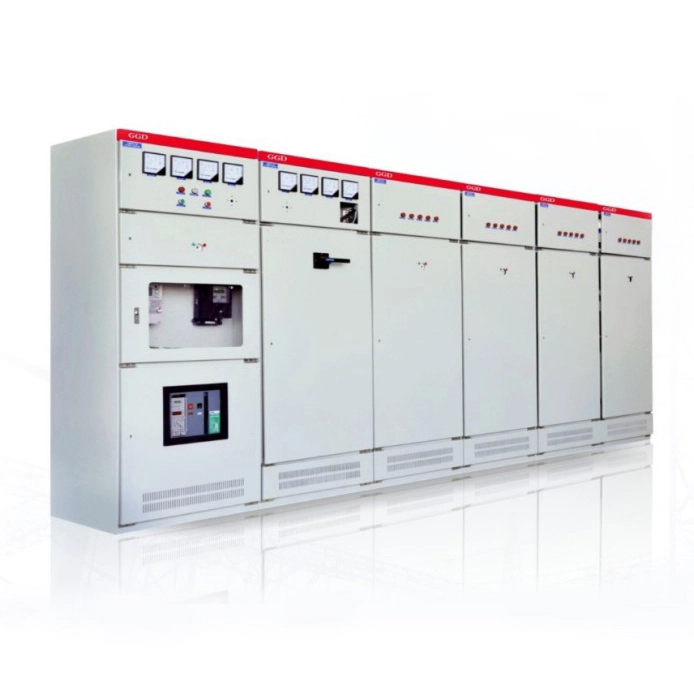

GGD LV Fixed Switchgear Panel for Power Distribution Grids
The GGD LV fixed switchgear panel ensures compliance with industry standards and offers high breaking capacity, dynamic and thermal stability, flexible electrical schemes, and practical design. The general purpose cabinet design allows for convenient combination and series connectivity, making it an ideal solution for power distribution grids.
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product details
GGD LV fixed switchgear conforms to lEC439 "Low-voltage switchgear and control equipment" standard GB7251-97 "low-voltage switchgear"national standard ZBK36001-89 "Low-voltage withdraw-type switch gear professional standard. The GGD cabinet adopts the form of a general purpose cabinet.
The product has high breaking capacity, good dynamic and thermal stability, flexible electrical scheme, convenient combination, series and practicability. The novel structure and high level of protection not only shorten the production cycle, improve efficiency but also save social resources. Can be used as low-voltage switchgear replacement products.
Product parameter
| Units |
|||
| Rated operational voltage | V | 400 | |
| Rated frequency | Hz | 50/60 | |
| Rated current | Horizontal bus | A | ≤4000 |
| Vertical bus | A | ≤1000 | |
| Rated short-time withstand current (1s) | kA | 50 | |
| Rated peak withstand current | kA | 105 | |
| Dielectric strength | V/1min | 2500 | |
| Rated insulation voltage | V | 660 | |
| Shellprotection class | IP30/IP40 | ||
| Size | mm | (600~1000)×1000×2200 | |
